ALPINE CDE-173BT CD-bilradio Bluetooth håndfri og streaming USB
kr.1,299.00
Beskrivelse

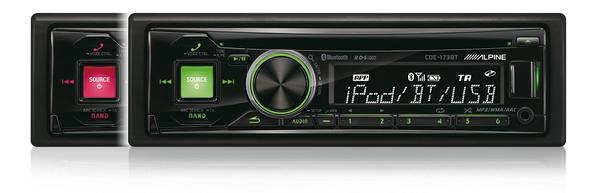

Alpine CDE-173BT
Alpine CDE-173BT giver dig bilstereo med Bluetooth i top kvalitet, foruden Bluetooth kan du også bruge USB, CD afspiller, begge understøtter MP3
CDE-173BT har Bluetooth håndfri indbygget i selve autoradioen, det betyder at du vil kunne modtage dine telefon opkald direkte fra CDE-173BT afbryder selv musikken og sender telefon lyden via Bluetooth direkte ud gennem bilens højttalere.
Alpine – CD styreenheder – CDE-173BT
Specificationer
Max Power Output Ratings
Max Power Output: 4 x 50W
FM Tuner
Tuning Range: 87.5 – 108.0 MHz
Mono Usable Sensitivity: 0.7 μV
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 – 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB
LW Tuner
Tuning Range: 153 – 281 kHz
Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB
Disc Player
Frequency Response: 5 – 20k Hz (±1 dB)
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
Wow & Flutter (%WRMS): B.M.L.
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class
File System: FAT 12/16/32
MP3 Decoding: MPEG Audio Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: AAC-LC Format ′′.m4a′′ File
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
BLUETOOTH®
BLUETOOTH® Version : Bluetooth V3.0
Output Power: +4 dBm Max. (Power Class 2)
HFP: Hands Free Profile
HSP: Head Set Profile
A2DP: Advanced Audio Distribution Profile
AVRCP: Audio/Video Remote Control Profile v1.4
Sound Tuning
Subwoofer Level Adjustment: 0 to 15
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: Off, 60/80/120/160 Hz
Low Pass Filter: Off, 60/80/120/160 Hz
Bass Level Control Range: -7 to +7 dB
Bass Center Frequency: 60/80/100/120 Hz
Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
Mid Level Control Range: -7 to +7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
Treble Level Control Range: -7 to +7 dB
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
Application Volume Level Setting: -14 to +14 dB
General
Power Requirement: 14.4 V.DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2V / 10k ohms
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 35°
Weight: 1.5 kg
Dimensions
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 161 mm
Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
Max Power Output Ratings
Max Power Output: 4 x 50W
FM Tuner
Tuning Range: 87.5 – 108.0 MHz
Mono Usable Sensitivity: 0.7 μV
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 – 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB
LW Tuner
Tuning Range: 153 – 281 kHz
Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB
Disc Player
Frequency Response: 5 – 20k Hz (±1 dB)
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
Wow & Flutter (%WRMS): B.M.L.
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class
File System: FAT 12/16/32
MP3 Decoding: MPEG Audio Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: AAC-LC Format ′′.m4a′′ File
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
BLUETOOTH®
BLUETOOTH® Version : Bluetooth V3.0
Output Power: +4 dBm Max. (Power Class 2)
HFP: Hands Free Profile
HSP: Head Set Profile
A2DP: Advanced Audio Distribution Profile
AVRCP: Audio/Video Remote Control Profile v1.4
Sound Tuning
Subwoofer Level Adjustment: 0 to 15
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: Off, 60/80/120/160 Hz
Low Pass Filter: Off, 60/80/120/160 Hz
Bass Level Control Range: -7 to +7 dB
Bass Center Frequency: 60/80/100/120 Hz
Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
Mid Level Control Range: -7 to +7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
Treble Level Control Range: -7 to +7 dB
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
Application Volume Level Setting: -14 to +14 dB
General
Power Requirement: 14.4 V.DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2V / 10k ohms
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 35°
Weight: 1.5 kg
Dimensions
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 161 mm
Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
